應用概述 : General of applications

  本機是通過設置旋轉離心盤、鼓風機、氣動噴槍，將濕顆粒制成美麗的球丸。將前道工序做成的濕顆粒投入旋轉離心盤內，啟動鼓風機后再將旋轉離心盤啟動，使?jié)耦w粒受到環隙空氣浮力、旋轉離心力、自身重力作用，呈環周繩股狀運動，從而形成真球度極高的球丸。
This machine makes damp granule into beautiful pellet by setting rotating centrifugal disk, blower,and pneumatic nozzle. Feed damp granule into rotating centrifugal disk, start fan then start rotating centrifugal disk. It can make the damp granule undertaken the action of air floating force in ring gap, rotating centrifugal strength and gravity itself, appear circle rope-turning movement and become high-degree ball shape pellet.

技術參數:Technical Data

型 Specification	230	400	500	700	1000	1300
功率 Power（kw）	0.75	2.2	3	3.7	5.5	7.5
生產能力 Capacity（kg/h）	2.5-4	5-8	8-16	40-80	70-150	100-300

所有尺寸僅作參考 , 視物料情況 , 本公司擁有變更權利 , 并不另行通知 .
*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon

•

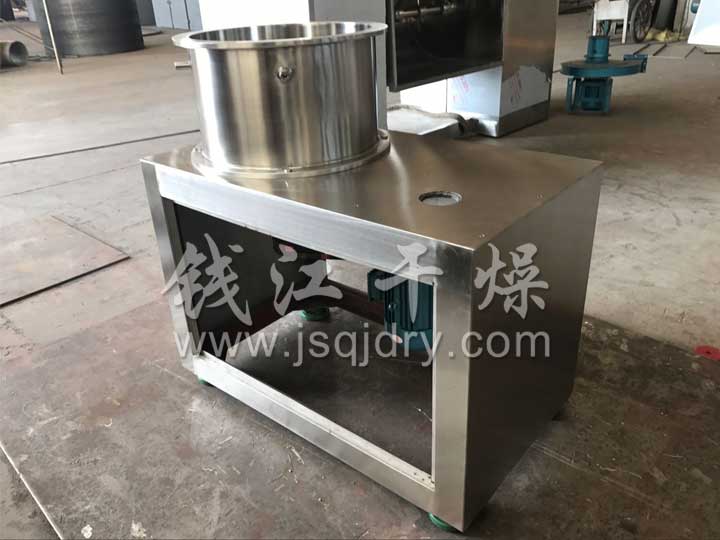

  QZL球形拋丸機
•

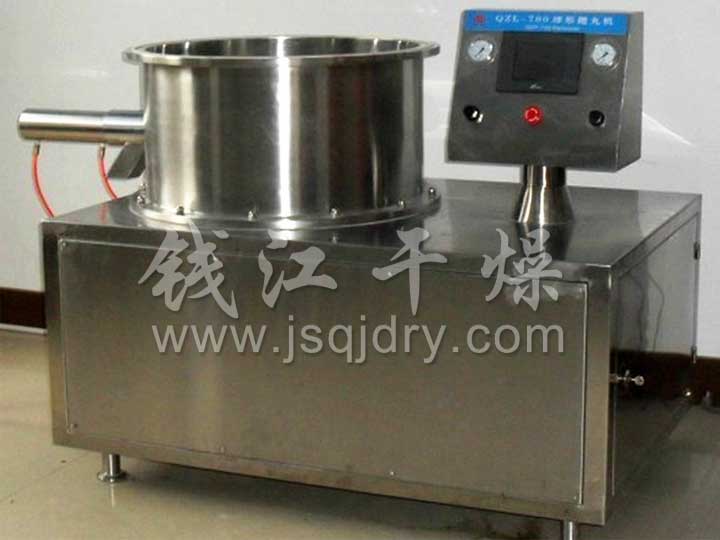

  QZL球形拋丸機
•

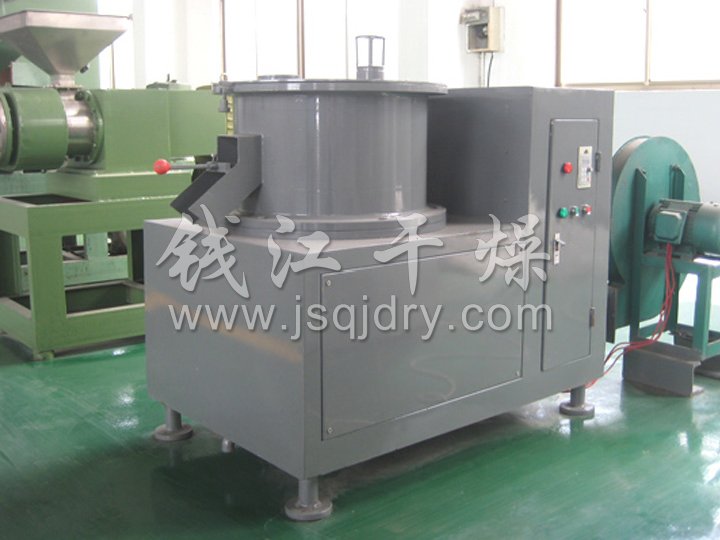

  QZL球形拋丸機
•

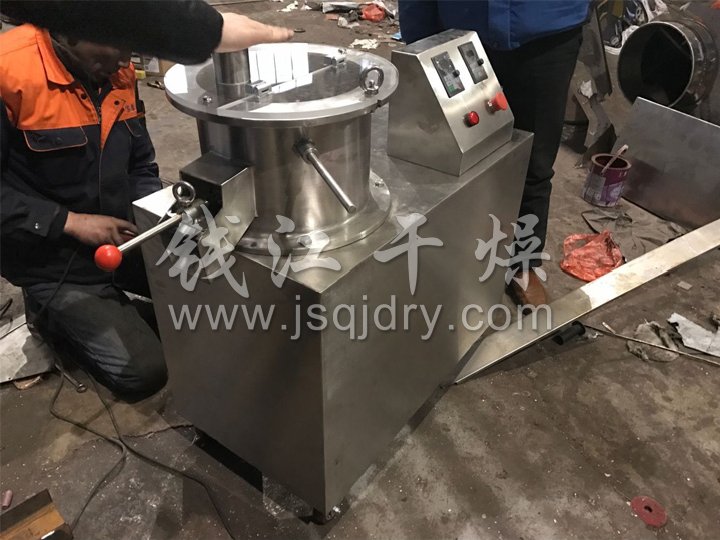

  QZL球形拋丸機
•

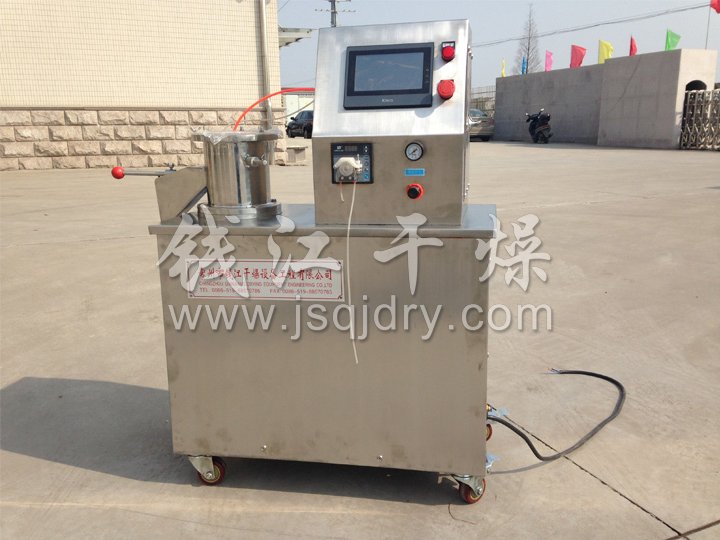

  QZL球形拋丸機
•

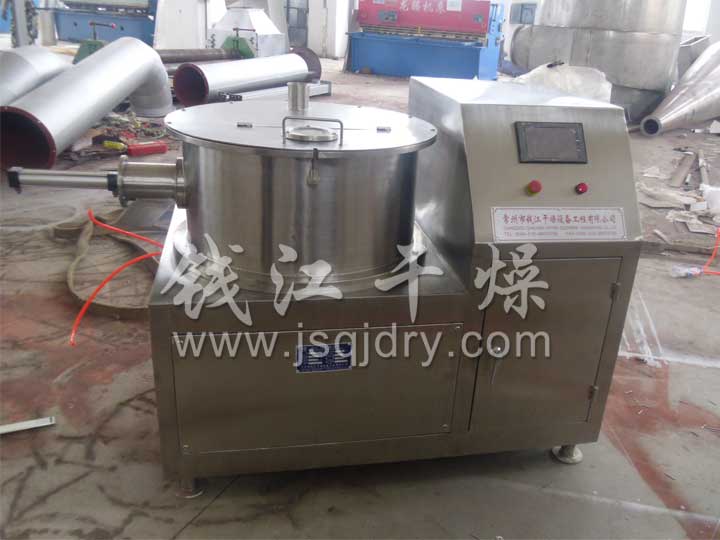

  QZL球形拋丸機
•
